In the world of Imaging Informatics, the DICOM header is not just a header—it's the DNA of medical image data, providing a structured narrative that elevates each medical image from a static picture to a dynamic chapter in a patient's health story. Understanding the DICOM header and its components is crucial for interpreting each image's profound messages. Today, we'll delve into the VR Groups, the critical elements that package vast data into neatly organized bundles of context and clarity.

Understanding DICOM Header Components

A DICOM header is composed of four fundamental components, acting as the pillars that support and articulate the full narrative of the medical images:

1. Tag – The Coordinates: The 'Tag' serves as the precise coordinates that guide us to specific information about the image, similar to how a label helps you find the right file in a filing cabinet. Each tag is comprised of a Group and an Element. For more details on the DICOM tag, check out our previous post here.

2. Value Field – The Narrative: Here lies the actual data or information, where the story told by the Tag unfolds with details like the PatientID or the type of scan conducted. For instance, if the tag is 'PatientID,' the value field would be the actual medical record number that represents the patient at this organization. For example: PatientID: 123456.

3. Value Length – The Extent: This component tells us the size of the data in bytes, a critical metric for digital communication within the DICOM      framework. This value is typically not displayed in human-readable DICOM dumps.

4. Value Representation (VR) – The Dialect: VR is crucial as it informs us about the data type we're dealing with, ensuring that the information is accurately interpreted by the software. Let’s delve deeper into VR groups.

The Toolbox Analogy: Unpacking VR Groups

Imagine a craftsman's toolbox, where each tool is designed for a specific purpose, essential to achieving the desired end result. Similarly, VR Groups in DICOM are indispensable for encoding and interpreting data with precision. They categorize the type of data or value of the tag.

Here are the six VR Groups:

• Long String (LO):

  • Designed for encoding detailed alphanumeric data, such as procedure descriptions. For example, ‘CT Abdomen Pelvis without contrast' is documented, ensuring clear, precise explanations.

  • Length: 64 bytes max.

• Age String (AS):

  • Designed for representing age values in a string format, such as '035Y' for 35 years old, ensuring precise age representation in DICOM.

  • Length: 4 bytes fixed.

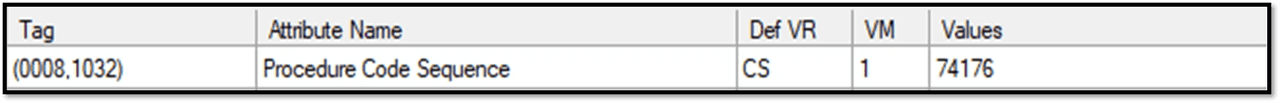

• Code String (CS):

  • Used to represent codes from predefined lists (e.g., billing and terminology).

  • Length: 16 bytes max.

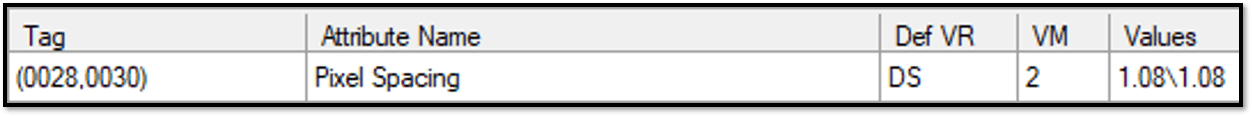

• Decimal String (DS):

  • Measures the millimeter distance between adjacent pixels in a medical image, crucial for precise internal feature measurements like tumor sizes. Example: “1.08\1.08" means each pixel covers 1.08 mm horizontally and vertically.

  • Length: 16 bytes max.

• Date String (DA):

  • Used to store and convey dates in the format "YYYYMMDD", where YYYY is the four-digit year, MM the two-digit month, and DD the two-digit day.

  • Length: 54 bytes max.

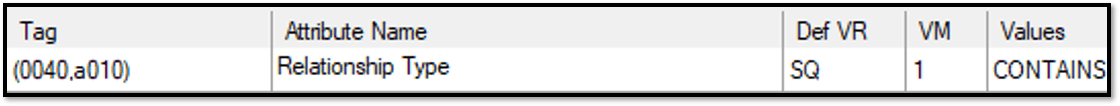

• Sequence (SQ):

  • Allows for grouping together a collection of attributes. This is used when an attribute can have multiple values or when a sequence of items needs to be represented in DICOM.

  • Length: Not Applicable.

Expanding on VR Groups: A Closer Look

VR Groups embody the diversity and versatility required to handle the myriad of data types within medical imaging. Let's appreciate the finesse each group brings to the table:

• Textual and Temporal: LO and DA manage text and time, ensuring that written words and chronological markers in medical imaging are accurately captured.

• Measurable and Coded: CS provides a quick reference for the type of procedure, while DS acts as a ruler, measuring dimensions within the image, essential for diagnoses where size and scale are critical.

• Hierarchical and Detailed: SQ organizes complex data into a coherent order, showcasing the organized complexity of medical data

 In Conclusion

As we continue our exploration of Imaging Informatics, the DICOM header, with its meticulously crafted components and VR Groups, does more than store data—it structures narratives. It allows us to view each medical image as a well-documented story, filled with insights waiting to be discovered and interpreted, shaping the future of healthcare diagnostics.

Stay with us as we further decode the intricacies of medical imaging, ensuring that every healthcare professional is equipped to turn images into action and pixels into precise patient care.
